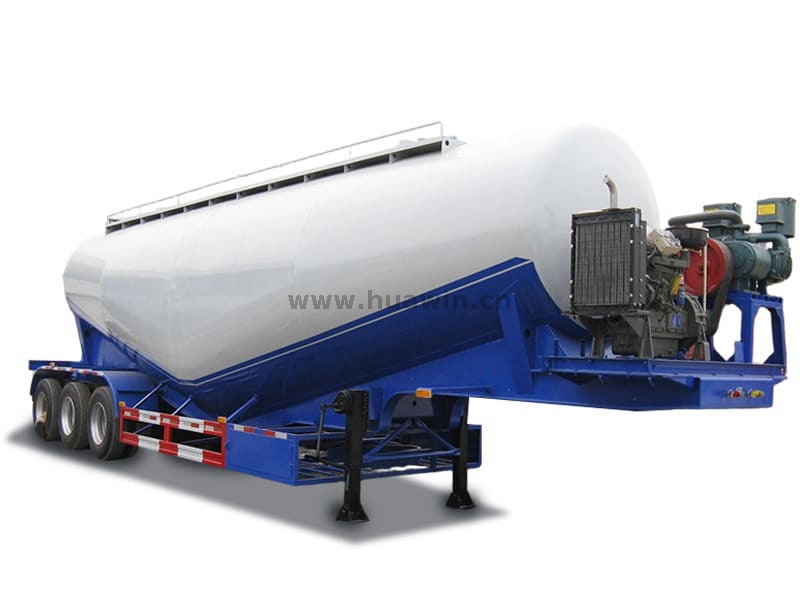

3 Axles Cement Silo Semitrailer

Tare Weight

8400kg

Overall Length

9600mm

Overall Width

2550mm

Overall Height

3950mm

Payload

40000kg

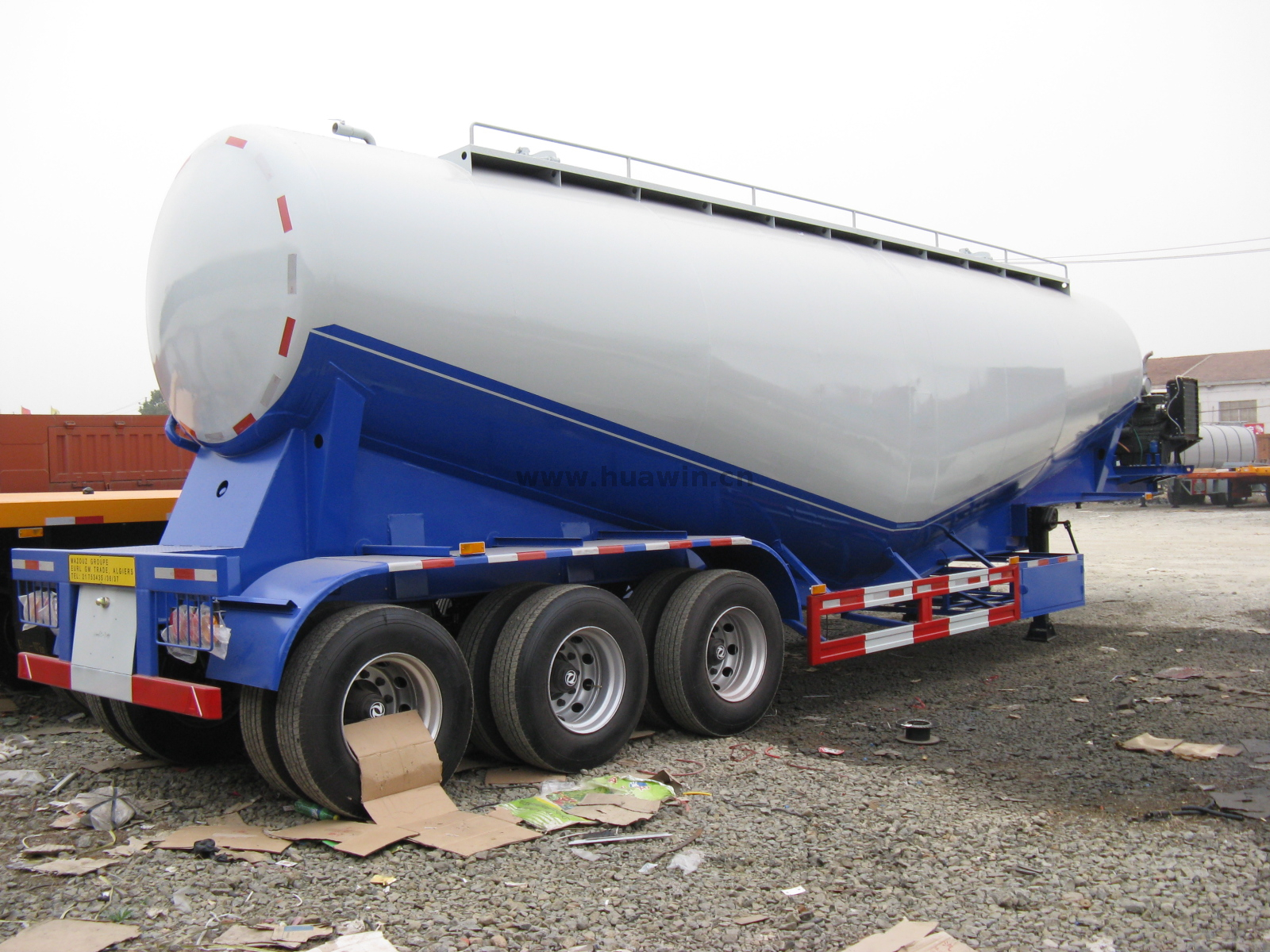

Photo for reference. Final products can be made according to exact requirements

SPECIFICATIONS

Tank Body

Beam

32M3; 1 compartment; T610L; 3mm; Re-enforced steel beam; Manhole: 2 units Internal Clasping Type

End Plate

16Mn; 3.5mm

Axle

3 Axles

FUWA 13 ton

Suspension

Heavy duty mechanical suspension with leaf spring 13mmx10pcs

Fender

Integrated steel fenders

King Pin

JOST brand 2.0/3.5” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

9.0-22.5 wheel rim 13 pieces

Tire

12RR22.5Tubeless tire with one spare tire. 13 pieces

Discharge Hose

Flexible Hosing 7 m diam 108 mm

Spare Tire

1 spare tire including1 carrier

Braking System

Four double and two single brake chambers with 2 pieces of 46L air tanks; Komee 4S/2M ABS

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint

Air Compressor

Chu Zhou tian lu hong 12/2 double cylinder

Diesel Engine

Kefa 4105

Accessories/Others

Pressure relief valve; Pressure indicator in Bar; Discharge valve; Standard tool box; Others Standard
