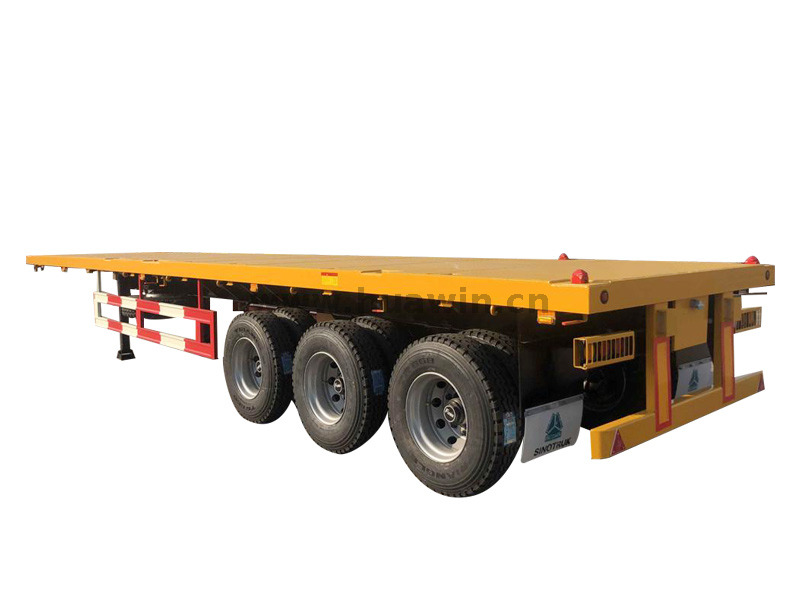

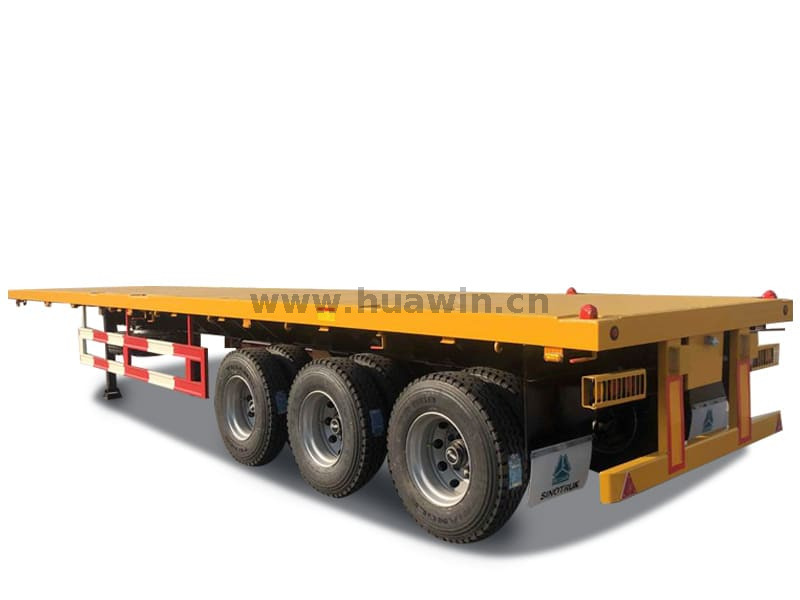

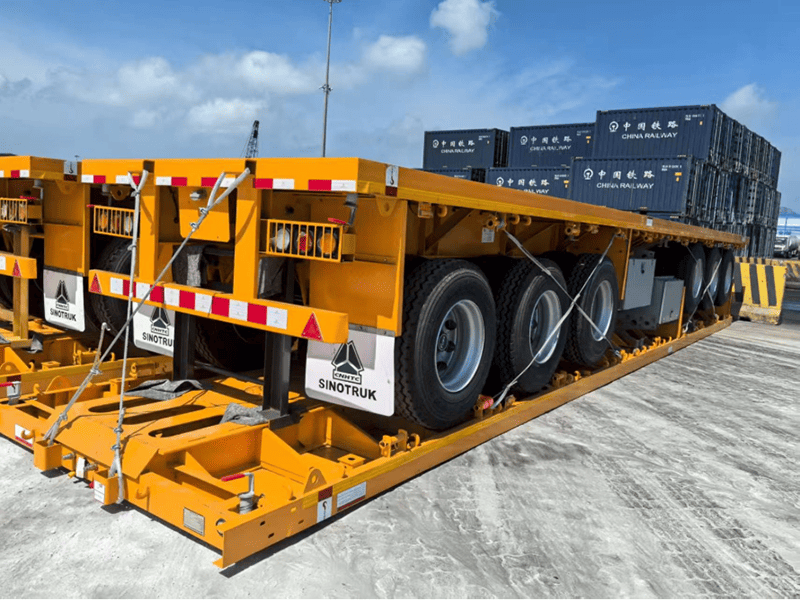

3 Axles 40FT Flatbed Semi Trailer

Products Showcases:

● 30 years of experience in semi trailer

● Multi-purpose, capable of transporting 40FT and 20FT containers, as well as some loose cargo

● 3-axle tandem leaf spring suspension, suitable for various road conditions

● Available in standard load and heavy load versions to suit different load requirements

● Using electrophoresis and powder spraying processes, quality guaranteed for 7-10 years

Applications:

Flatbed semi-trailers are designed for easy loading, unloading, and securing, and are typically used for medium- to long-distance transport between ports, freight stations, and logistics parks. Common applications of 3-axle 40FT flatbed semi-trailers include:

1. Container transport: Standard container sizes are 20 feet and 40 feet. Flatbed trucks can carry one 40FT container or two 20FT containers, secured with 12 sets of standard container locks.

2. Steel transport: This includes steel plates, coils, and pipes. It can be used with strapping straps, wire ropes, and other reinforcement equipment to ensure safe transport.

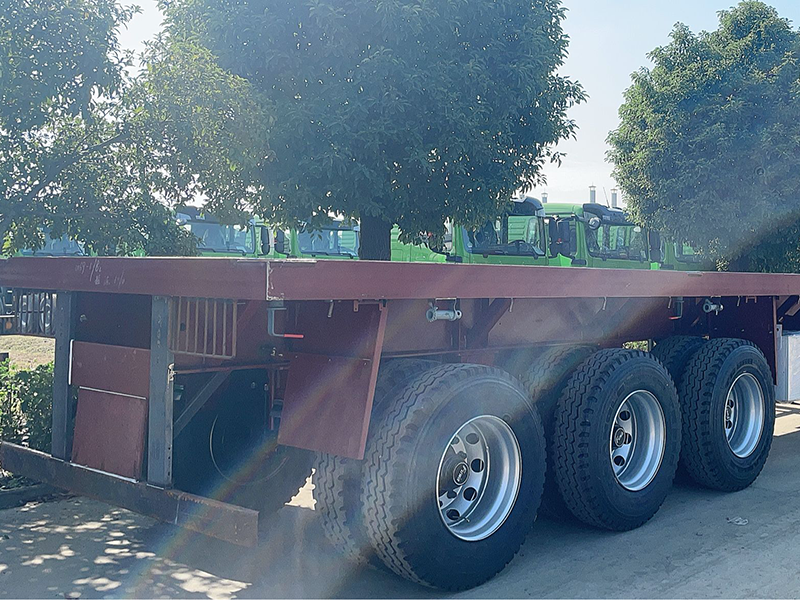

3. Transport of various bulk cargoes and some machinery: Using side walls less design, it allows for flexible and convenient loading and unloading, and can be used with forklifts or cranes.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles, Semi-Trailer. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

3 Axles 40FT Flatbed Semi Trailer
Tare  Weight		7700kg
Overall  Length		12400mm
Overall  Width		2480mm
Payload		45000kg
SPECIFICATIONS
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle	3 axles
	FUWA/BPW Brand 13T/16T
Suspension	Heavy duty mechanical suspension

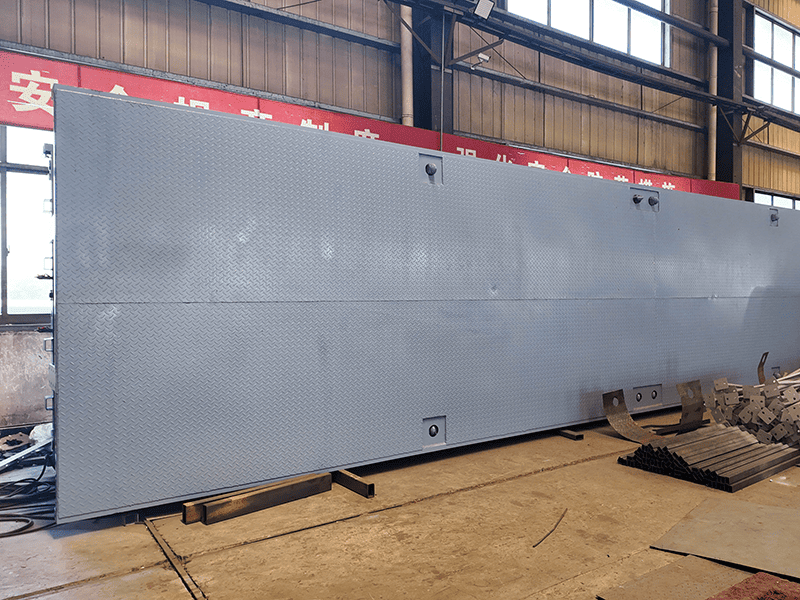

Floor	3mm checker plate

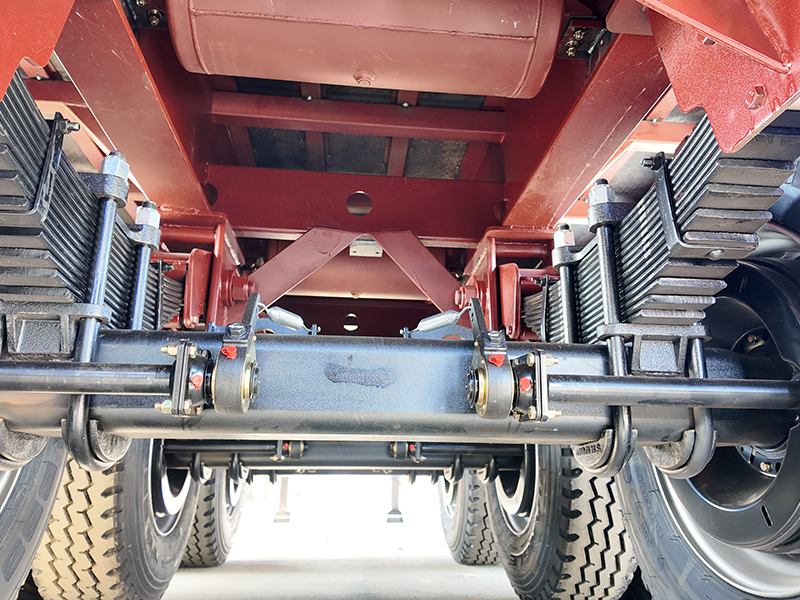

Leaf Spring	13 piece Leaf spring
King Pin	JOST brand 2” Bolt-in King Pin

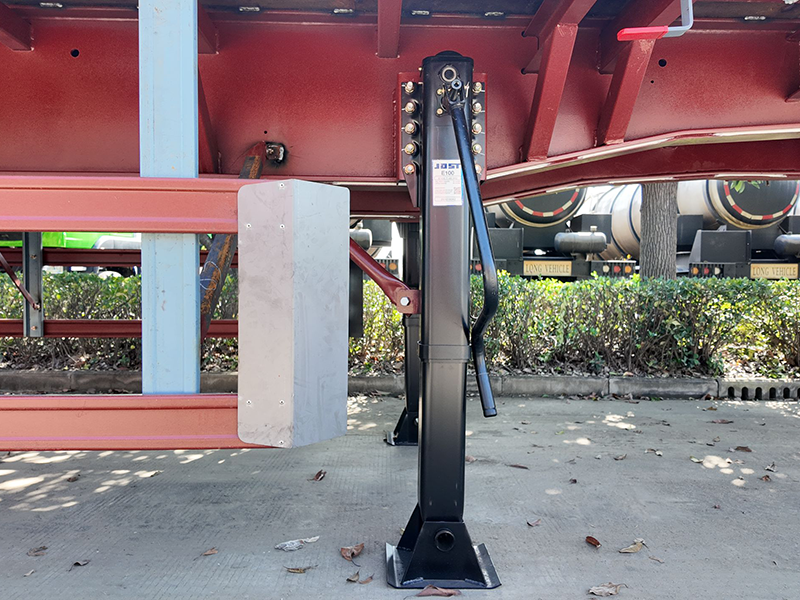

Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.0-22.5 wheel rim 13 pieces
Tire	12R22.5 tire with one spare tire. 13 pieces
Twist Lock	12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including a carrier

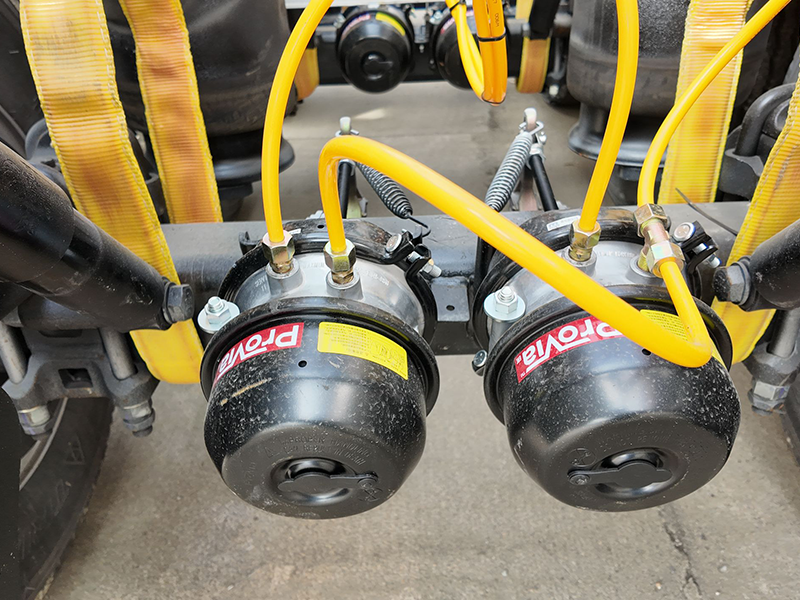

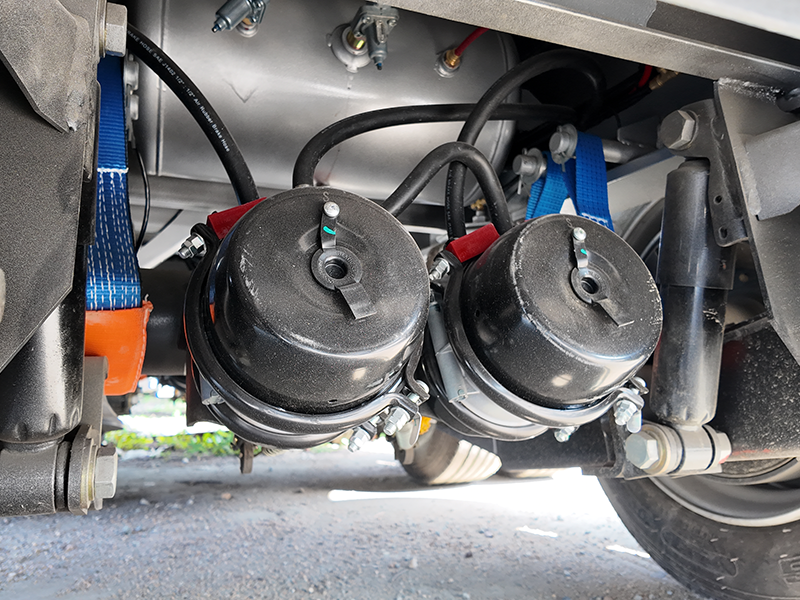

Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

Feature:

1.Axle: Chinese FUWA brand axles are used generally, with load capacities of 13 tons and 16 tons available. BPW brand axles are also optional according to customer requirements.

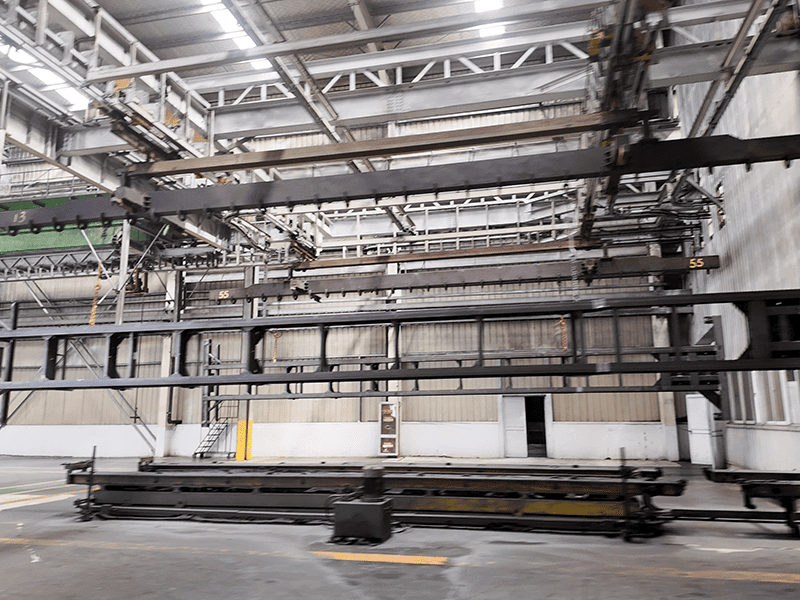

2.Welding: The chassis is welded using high-strength low-alloy steel, ensuring a sturdy structure and excellent torsional resistance; it supports multi-leaf steel spring suspension or air suspension.

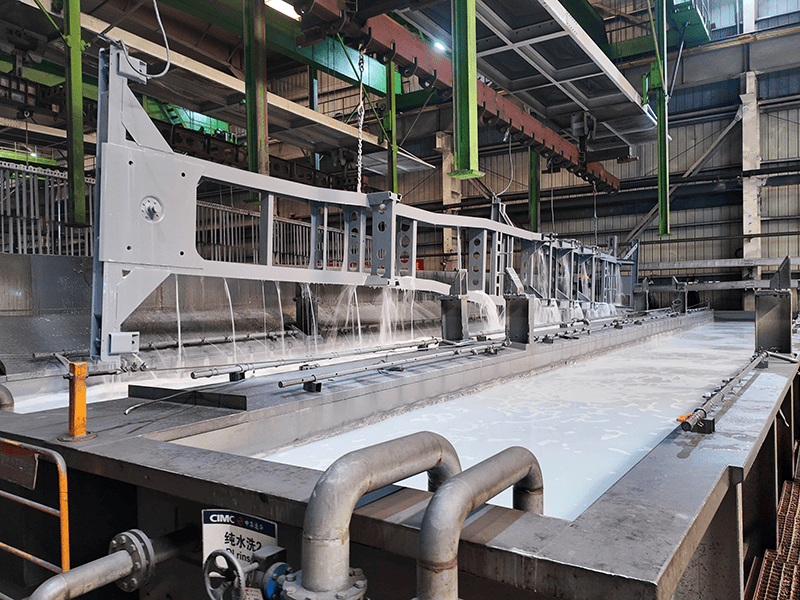

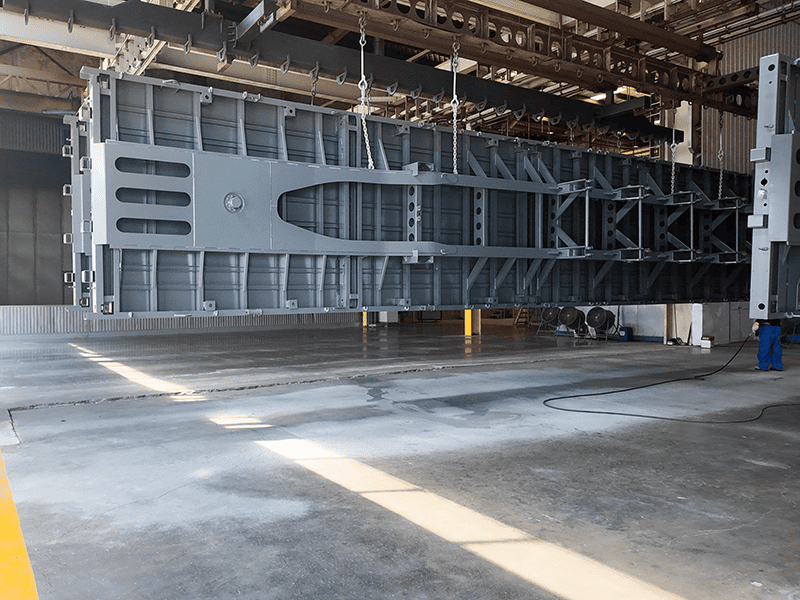

3.Paint: Pre-painting shot blasting and sandblasting, exceeding SA2.5 standard, enhances electrophoretic adhesion, finally, advanced powder coating technology ensures long-lasting paint adhesion without peeling.

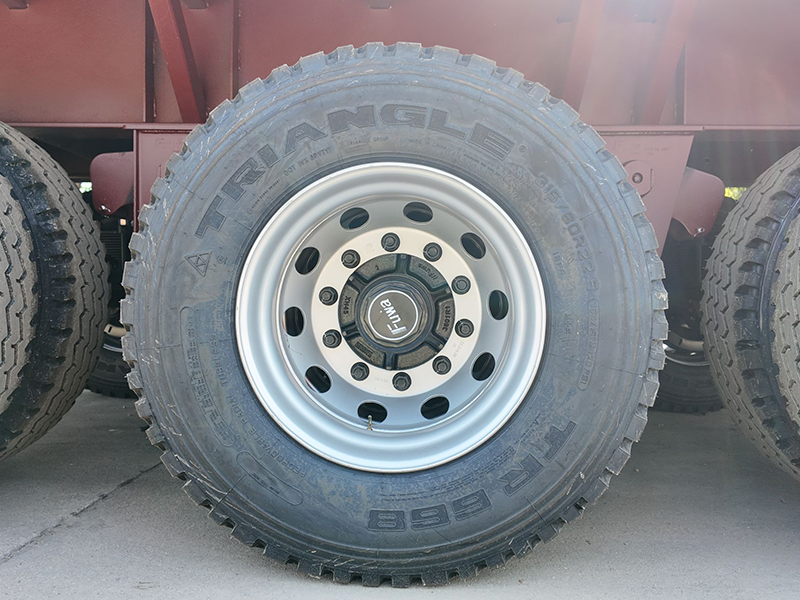

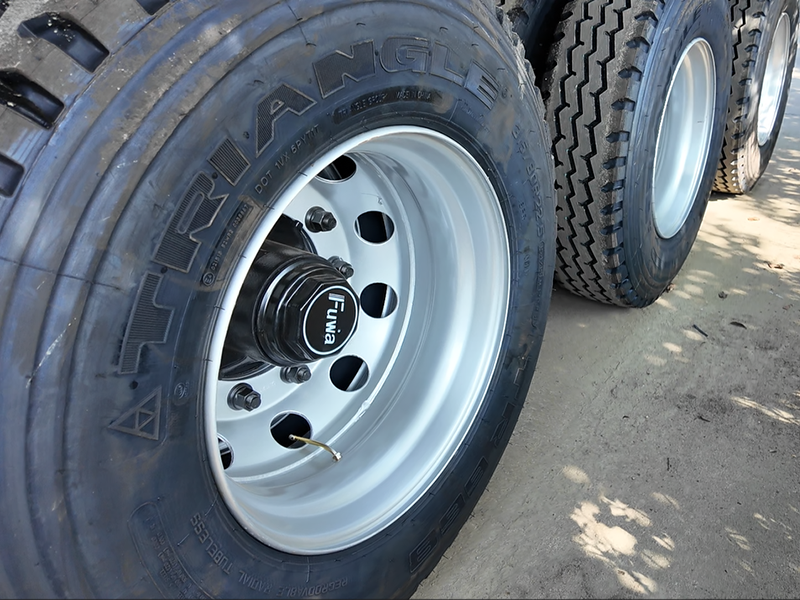

4.Tire: Uses well-known Chinese brand, model 12R22.5 tubeless tires, with excellent load-bearing capacity, safety, and durability.

5.Valves: Uses internationally renowned brand WABCO, the braking system is a dual-circuit air brake system with standard ABS anti-lock braking system, ensuring reliable braking.

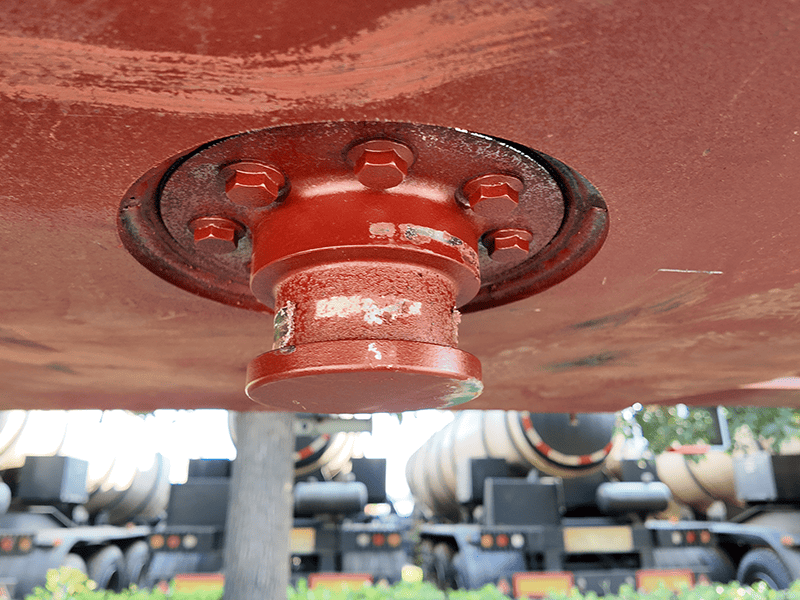

6. King pin&Landing gear: Both use internationally renowned brand JOST, offering strong safety and reliability, while also featuring a simple structure and easy maintenance

Shipping method:

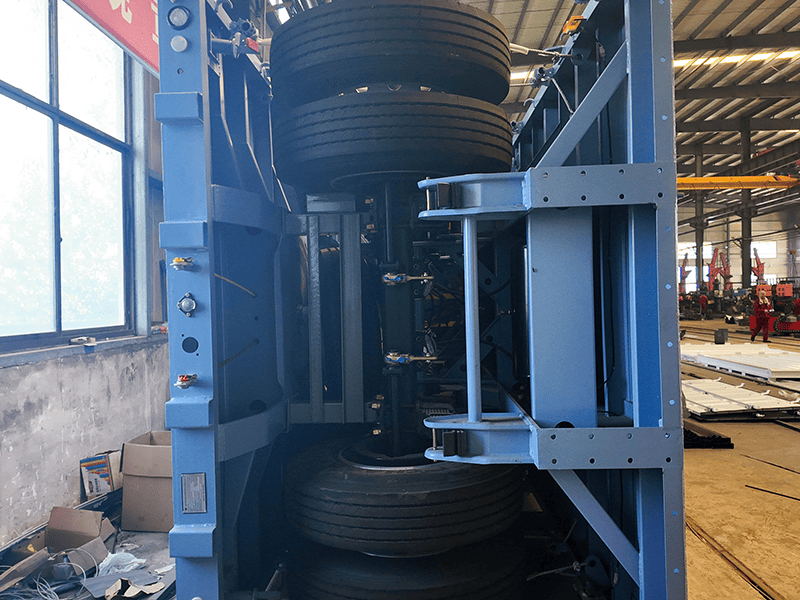

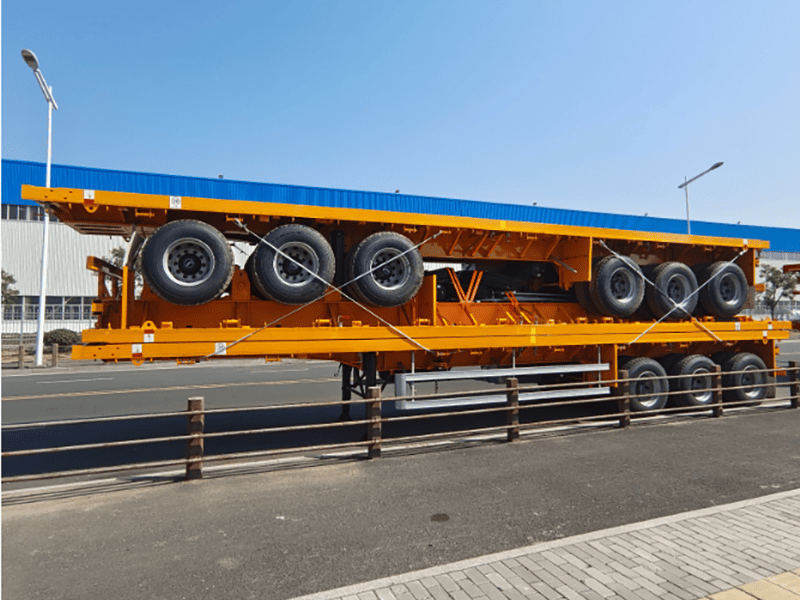

The most suitable shipping method can be arranged according to the quantity. For goods exceeding one piece, we offer packing options of 2 units or 3 units per pack to reduce the volume of sea freight and thus save on shipping costs.
