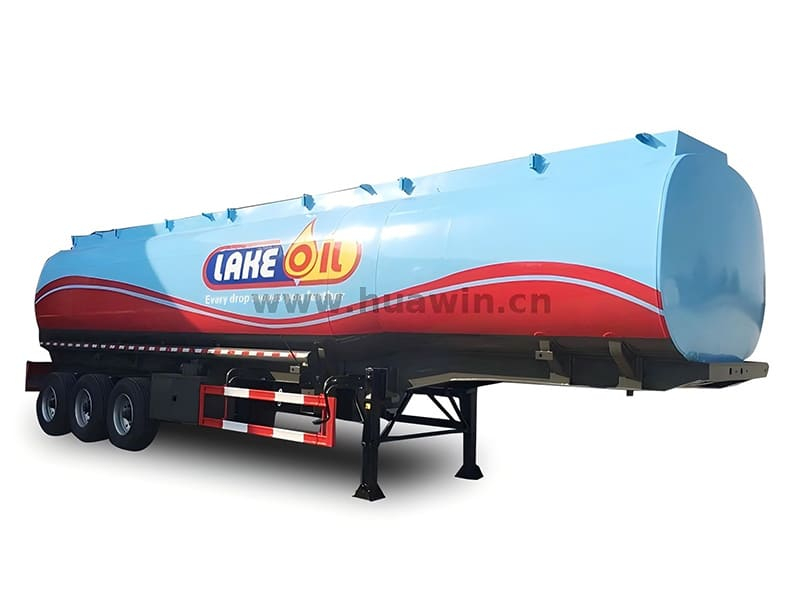

3 Axles 35, 000 Liters Oil Fuel Tanker Tank Trailer
Specifications:
| Main Dimensions | ||
| Overall Length | 11000mm | |
| Overall Height | 3600mm | |
| Tare Weight | 10000KGS | |
| Loading Capacity | 35m3 | |
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 35CBM | |
| Tanker Body Material | 6mm steel / Q345 high tensile strength steel | |
| End plate | 6mm steel sheet/Q345 high tensile strength steel | |
| Manhole cover | Aluminum alloy API manhole cover, ∮500mm ,4 sets with 4 breather valve | |
| Bottom Valve | 4 sets of Aluminum API Pneumatic Bottom Valve | |
| Discharging valve | 4 sets ∮100mm discharging valves | |
| Discharging Pipe | 4"rubber hose, 4 pcs | |
| Chassis | ||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |
| Axle | 3 axles | |
| FUWA 13 Ton | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2" bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension | |
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 9.0-22.5 wheel rim, 13 pieces | |
| Tire | 12R22.5 tubeless ire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
