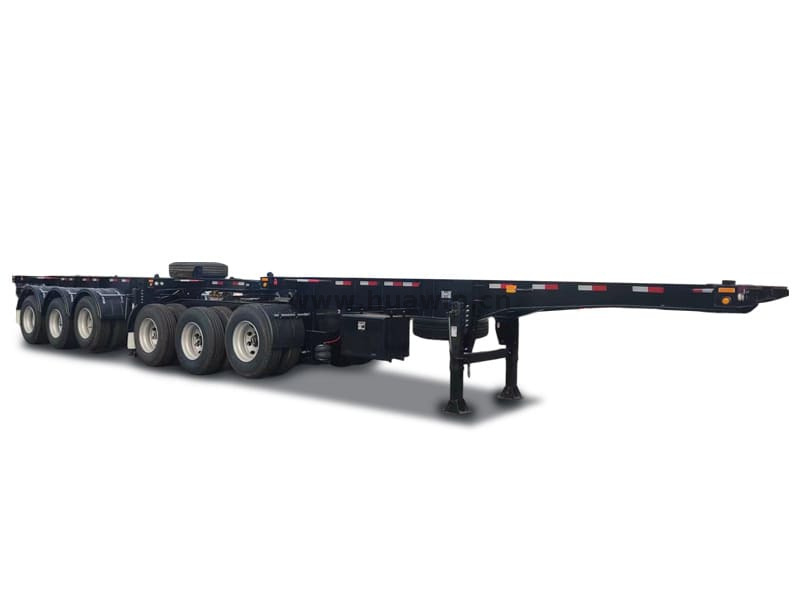

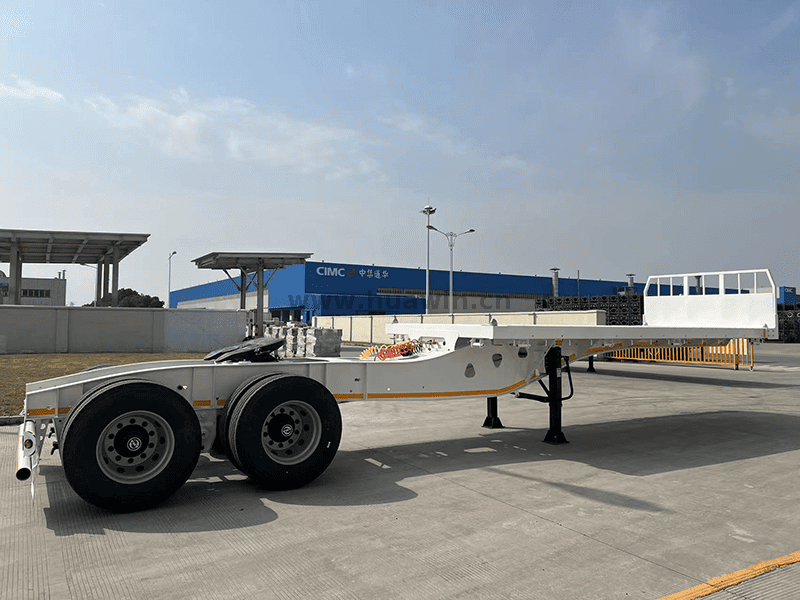

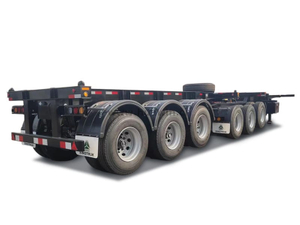

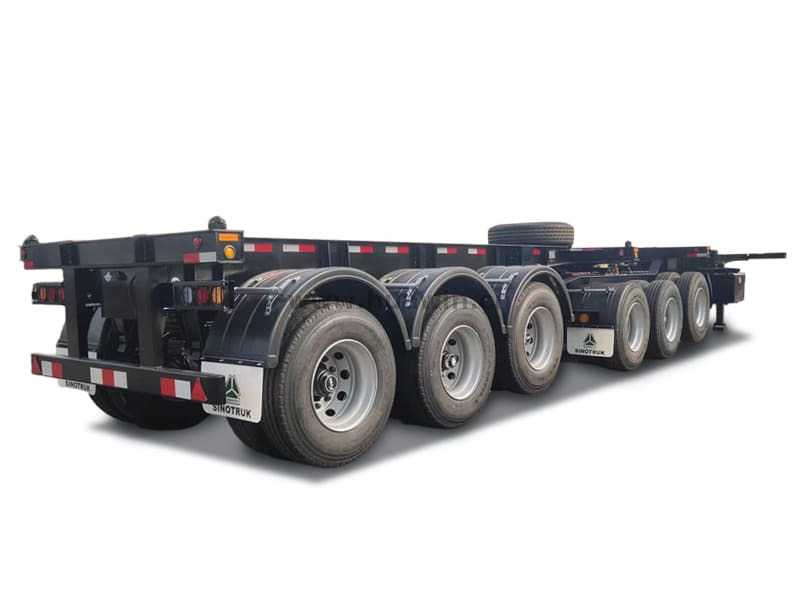

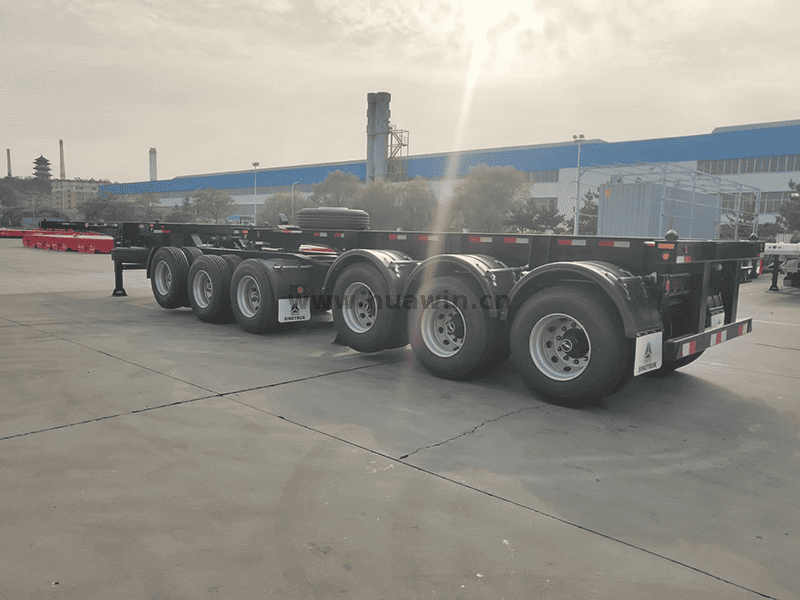

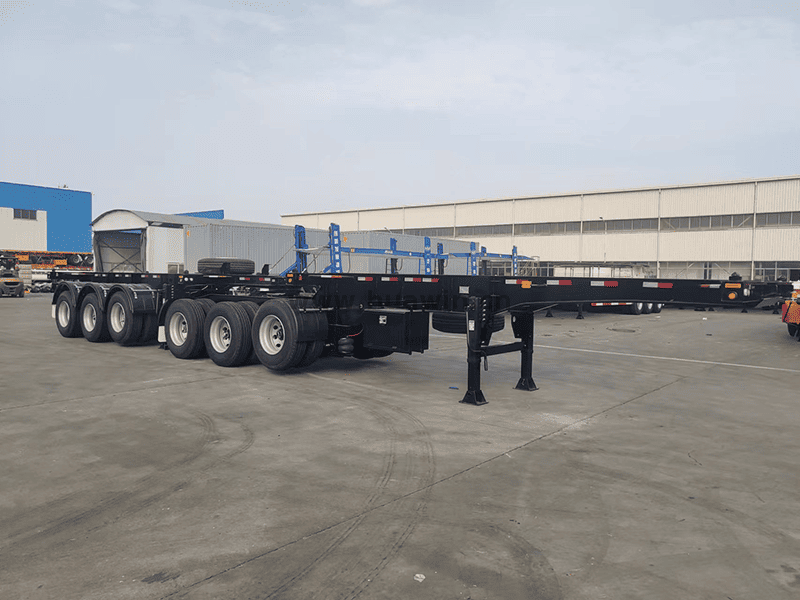

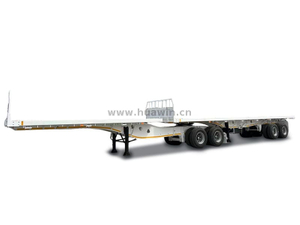

20FT+40FT 3 Axles Superlink Flatbed Trailer

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

20FT + 40FT 3 Axles Superlink Flatbed Trailer This model is usually designed to carry larger tonnages of cargo, the exact capacity varies depending on the manufacturer and material, but most of these flatbeds have a capacity of 20-40 tons. High-strength steel is also used to enhance the frame's robustness and durability, ensuring safety and stability under heavy load conditions.

20FT + 40FT 3 Axles Superlink Flatbed Trailer This model can be easily adapted to different transportation needs, such as long cargo, super-high cargo, etc. It is especially suitable for the transportation of heavy equipment, construction machinery, large steel and other bulk items. Meanwhile, it is equipped with safety features such as efficient braking system, LED lighting and reflective markings to ensure transportation safety under different road conditions.

Applications:

20FT + 40FT 3 Axles Superlink Flatbed Trailer is widely used in many industries due to its unique design and powerful loading capacity, especially for the transportation of overweight, over-length or special sized cargoes, such as heavy equipment, over-length cargoes, containerized cargoes etc.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles, Semi-Trailer. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

20FT+40FT 3 Axles Superlink Flatbed Trailer
Type				A: Trailer	B: Trailer
Overall Dimensions (mm)				LxWxH:19,000x2,480xH (The height can be adjusted by the specification of tractor)
Floor				2.75mm check plate
Front wall				1000mm front wall
Tare weight(kg)				5,100	6,100
Max.Payload ( kg)				14,000	24,000
Fabric & Configuration			Tire	Type: 12R22.5-18PR, equip 8pcs per chassis without spare tire; Tri-angle brand.	Type: 12R22.5-18PR, equip 9pcs per chassis including one spare tire; Tri-angle brand.
			Axle	FUWA13T*2sets	FUWA13T*2sets
			Kingpin	JOST50# JOST 50#, bolt on type:Ilset	JOST 50#, bolt on type, 2sets
			Fifth wheel	50# fifth wheel 1 set Made in China	Nil.无
			Suspension	Mechanical 7-leaf suspension,90*16mm	Mechanical 7-leaf suspension,90*16mm
			Landing Gear	JOST E100	JOST E100
			Brake system	Dual air brake system,30/30 type, WABCO brake,valve without ABS.	Dual air brake system,30/30 type, WABCO brake valve without ABS.
			Air brake pipe connector	Red and yellow gladhand valve	Red and yellow gladhand valve
			Electric system	24V,LEDlights	Red and yellow gladhand valve
			Tool box	Nil	1 set
			Mudguard	Standard	Standard
			Spare tire carrier	Nil	Equipped 2 sets per chassis
			Corner plate carrier	1 set	1 set
			Dangerous Goods Identification Board	2 sets	3 sets
			Container lock	4 sets of container locks;	12 sets of container locks:
			Rope hook	Standard
			Rope tightener	Standard
			Painting	KTLelectrophoresis+automatic powder spraying

Tires:

20FT + 40FT 3 Axles Superlink Flatbed Trailer is equipped with 12R22.5 tires, including one spare tire. These tires feature a robust steel-reinforced structure, ensuring exceptional load-bearing capacity and durability. The sturdy tire carcass is designed to withstand high-load operations, making them ideal for long-term heavy-duty transportation. Excellent wear resistance is achieved through a rational tread design and wear-resistant rubber compound, making it suitable for long-distance high-speed or complex mining site road conditions, thereby extending service life. The radial structure reduces heat generation, ensuring safer operation and minimizing the risk of tire blowouts, thus providing excellent heat dissipation properties.
