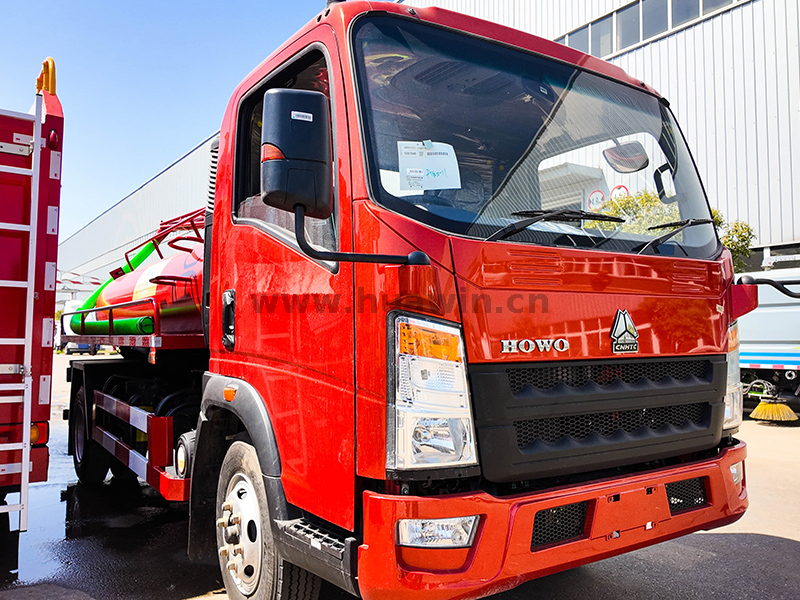

HOWO 4X2 Fecal Suction Truck - 4CBM-Test

PRODUCE SHOWCASE:

PRODUCT INTRODUCTION：

Suction truck, mainly applied to septic tanks, sewage ditches and sewers and other environmental cleanup and cleaning of special vehicles, mainly for urban and rural sanitation departments to pump and transport feces and other sewage. It is suitable for pumping feces, sewage, sludge and liquid mixed with small suspended debris, and is suitable for municipal sanitation, large and small industrial and mining enterprises, neighborhoods, schools, septic tank cleaning and transferring, urban pipeline cleaning and unblocking, and factory methane sludge cleaning.

● China best  rear loader truck factory

● 30 years experience on Fecal Suction Truck designing

● Build strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

PRODUCT FEATURES：

1：Fully equipped and easy to operate

Suction manure truck by the car chassis, oil and water separator, water and gas separator, special vacuum suction pump, volumetric pressure gauge, pipe network system, suction conduit, self-flowing valve, vacuum tank, connecting device (see manure window), automatic overflow valve, 360 ° rotary boom, multi-directional no dead-angle pumping, the mouth of the tank can be directly loaded with sewage. This product is mainly used for pumping feces, sludge slurry and liquid mixed with small suspended debris, with pumping efficiency suction, self-discharge and direct irrigation and other characteristics.

Cabin	Driving type 4x2 RHD

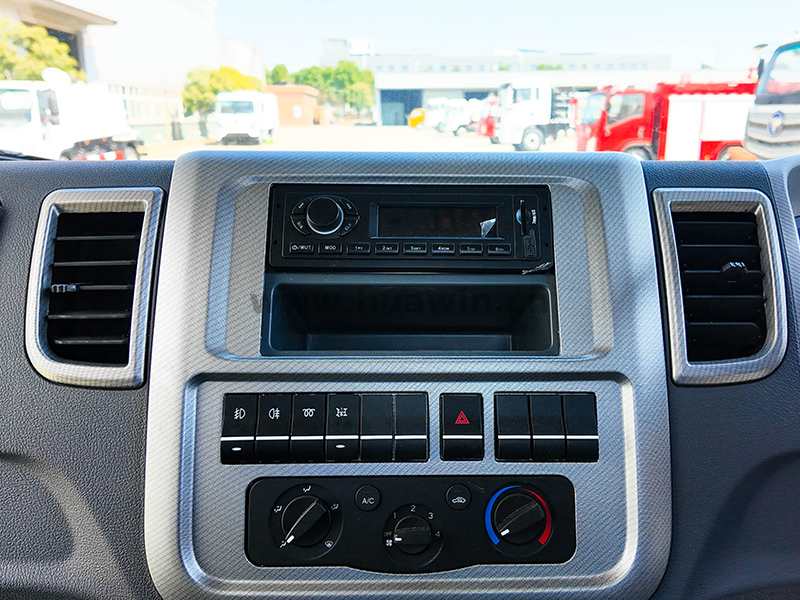

	1880mm-width single cabin with two seats, without bed, with air conditioner, manual controlled windows and door, as attached photo for reference.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6930x2300x3100
	Wheel base (mm)	3360
Weight in KGS	Tare weight	4200
	Payload	2400
	Front axles loading capacity	1x2400
	Rear axles loading capacity	1x4200
Engine	Brand	Yunnei
	Model	YN4102QBZL
	Type	4 cylinder in line, Turbocharged and inter-cooled
	Horse power (HP)	116HP
	Emission standard	Euro 2
Gearbox	WLY6TS55C gearbox, 6-speed forwards gear & 1 reverse gear
Steering	Power steering
Oil tank	120 iron liters
Tire	7.50R16 16PR steel radial, 7pcs including one spare tire

                                                              Tanker Body

Total Volume（m3）	4CBM
Tanker Body Material	6mm steel / Q235 carbon steel
Tanker End Material	6mm steel / Q235 carbon steel
Vacuum Pump	Chinese brand pump, Weilong brand
Feces Viewing Window	A feces viewing window at the front of the tank, with hanging rod

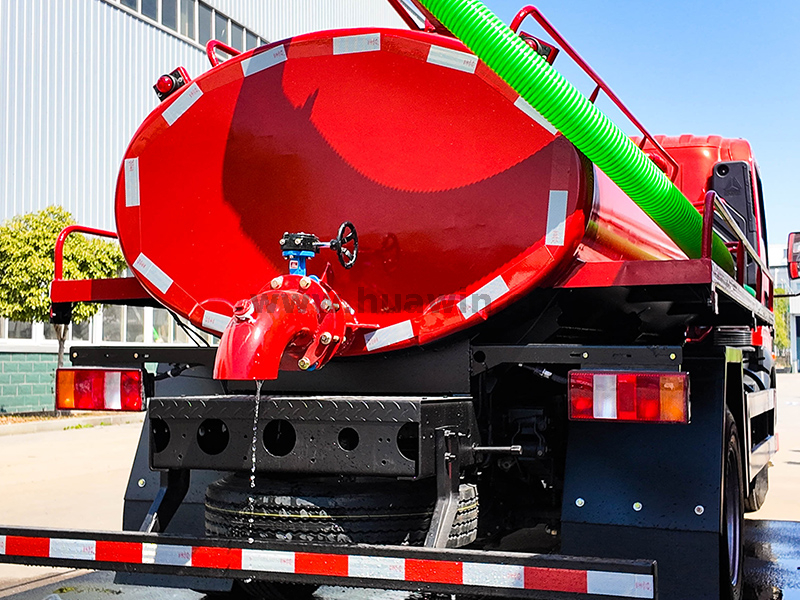

Self-flowing Butterfly Valve	A ￠150 self-flowing butterfly valve at the end of the tank, with elbow opening
Anticorrosion	Glass flakes are used for corrosion protection inside the tank

2：High-quality accessories for economical use

Advanced rotary vane vacuum pumps are selected to increase the Bachmann alloy convex office sleeve, so that the rotary vane and the pump body maintain a reasonable gap, avoiding the centrifugal force to throw the rotary vane out of the noise when rotating at a high speed and generating friction and high temperature, thus improving the service life of the vacuum pump and reducing the cost of maintenance.

vacuum pumps

The pump is the core part of the vacuum suction and discharge truck in operation. It pumps the air inside the sealed tank to a certain vacuum, forming a negative pressure inside the tank, so that all kinds of fluids such as fecal liquid, sewage, oil, etc. below or above the ground are automatically sucked into the tank, and in addition, the sewage inside the tank can also be discharged through the pressurization of the tank.
